Patterns and techniques for building advanced workflows: referencing data between steps, using AI reliably, making external API calls, writing custom logic, and designing human-in-the-loop automations.

Workflows: Advanced Concepts

This page covers the patterns and techniques for building non-trivial workflows: referencing data across steps, conditional logic, data transformation, AI-powered automation, human-in-the-loop approvals, and more.


Referencing Data Between Steps

Most workflow actions need data from earlier steps: the record that triggered the workflow, a value returned by an AI action, a field from a database lookup. Variables are how you pass data from one step to the next.

How it works:

  1. In any action’s settings, click the + button to open the variable picker.
  2. Browse the list of previous steps (the trigger and every action that ran before this one).
  3. Select a field. Its value will be injected at runtime when the workflow runs.

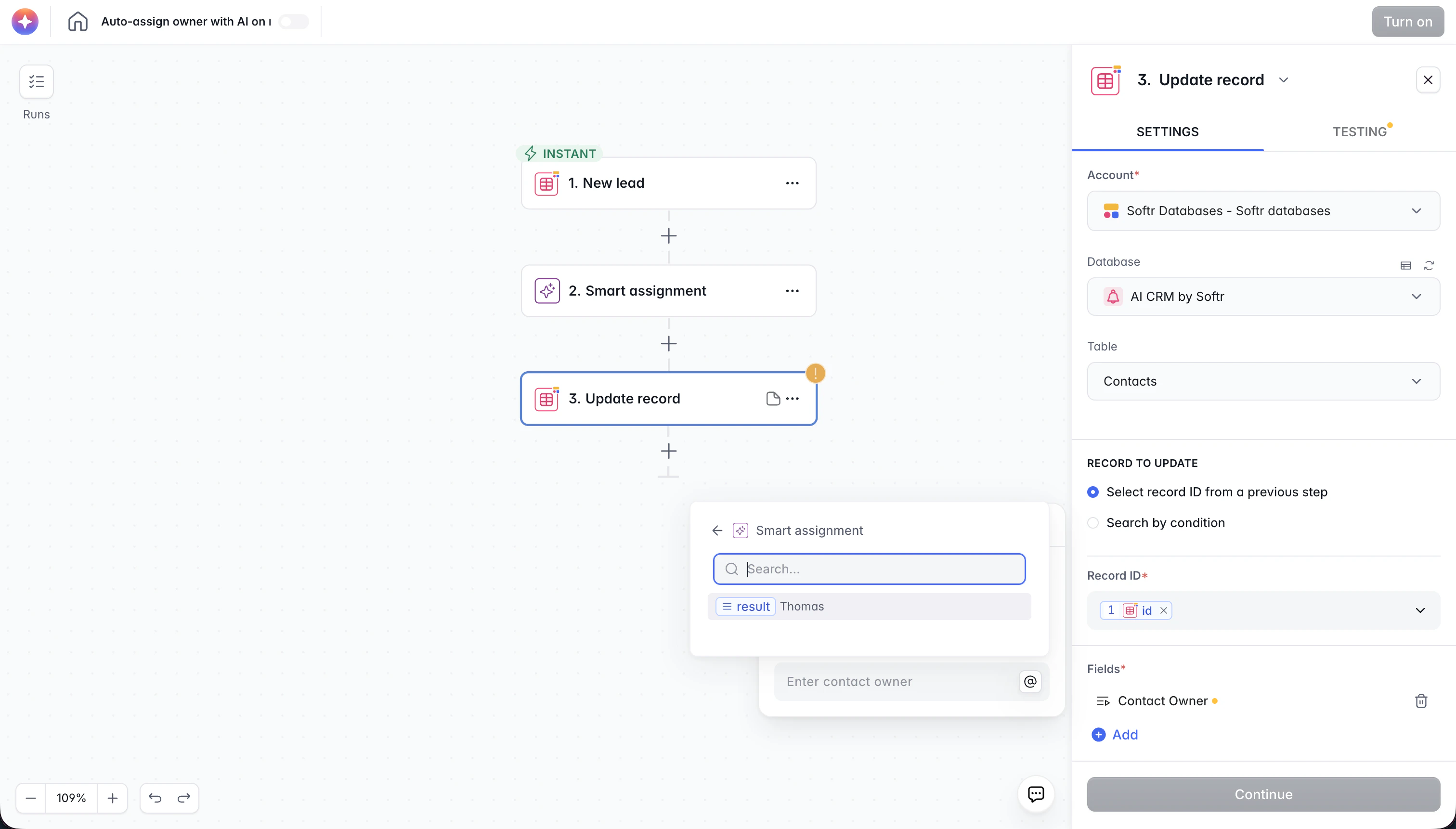

Variable picker showing outputs from a previous step

Variable picker showing outputs from a previous step

You can combine variables with static text. For example, a Slack message might read: A new bug was reported by [+ Trigger → email]: [+ Trigger → description].

Where variables come from:

  • Trigger data - the record, form submission, or webhook payload that started the workflow. Available in every subsequent step.
  • Action outputs - the result of any previous action. For example, an AI Categorize step outputs a category field; a Get Record step outputs all the record’s fields.
  • Loop variables - inside a Loop, use {loopVariables.fieldName} to access the current item’s data. See the Loop section below.

Example: A form submission triggers a workflow. Step 1 uses the submitter’s email from the trigger to look up their full user record. Step 2 sends a Slack message that combines the form’s message field (+ → Trigger → message) with the user’s account plan from Step 1 (+ → Step 1 → plan).

Common Trigger Payloads:

Different triggers provide different sets of variables at the start of your workflow. Understanding these helps you design better logic:

  • UI triggers (Submit form, Run custom workflow, Add record, Edit record): Provide context about the app, including applicationId, pageId, and blockId. Triggers from list blocks also include the specific record object.
  • Softr Databases triggers: Provide an id and a fields object containing all key-value pairs from the record.
  • Softr Apps data triggers (User added): Provide rich user metadata including fullName, credentials.email, and userGroups, so you can branch based on permissions.
  • Webhooks & Calendly: Pass the raw body of the event. Webhooks additionally provide header and query variables.

Branch

The Branch action splits your workflow into two paths based on a condition.

  • If the condition is true, the workflow follows the “yes” path.
  • If the condition is false, it follows the “no” path.

This is the main way to build if/else logic without writing code.

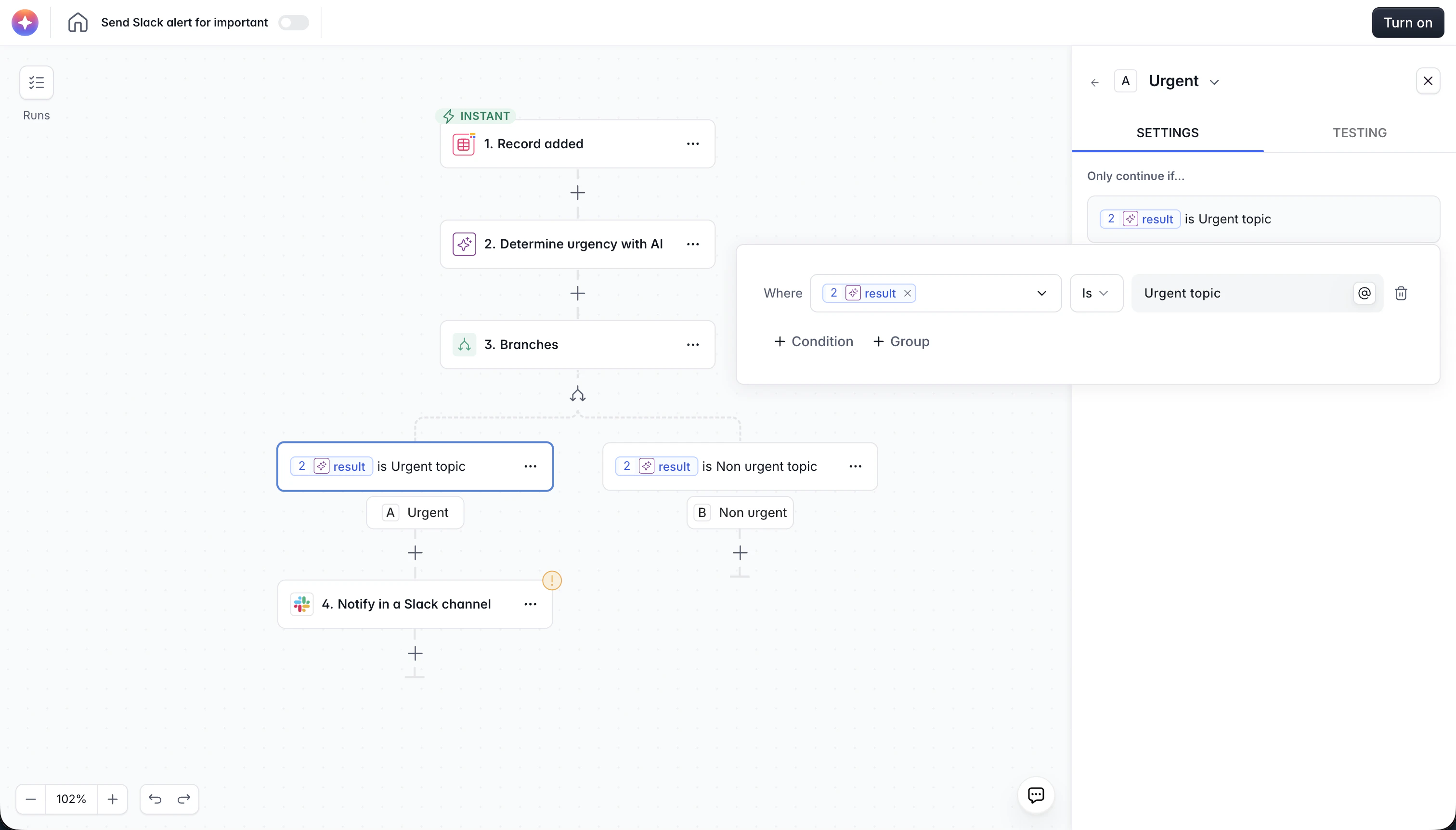

Branch action splitting the workflow into two paths

Branch action splitting the workflow into two paths based on an AI result

Using a variable from a previous step inside a Branch path

Using a variable from a previous step inside a Branch path

Example: After a user submits a form, branch on whether their subscription plan is “Pro”. If yes, send them a welcome email for Pro users. If no, send the standard welcome email.

Branches are especially powerful when combined with AI actions - see AI + Branch Patterns below.


Filter

The Filter action checks a condition and stops the workflow if the condition is not met.

Use it when you only want the workflow to continue for certain records or situations, and there’s nothing to do in the “no” case.

Example: A workflow triggers on every new record in a Softr Databases table. Add a Filter at the start to stop the workflow if the record’s “Status” field is not “Ready”. Only “Ready” records will proceed through the rest of the workflow.

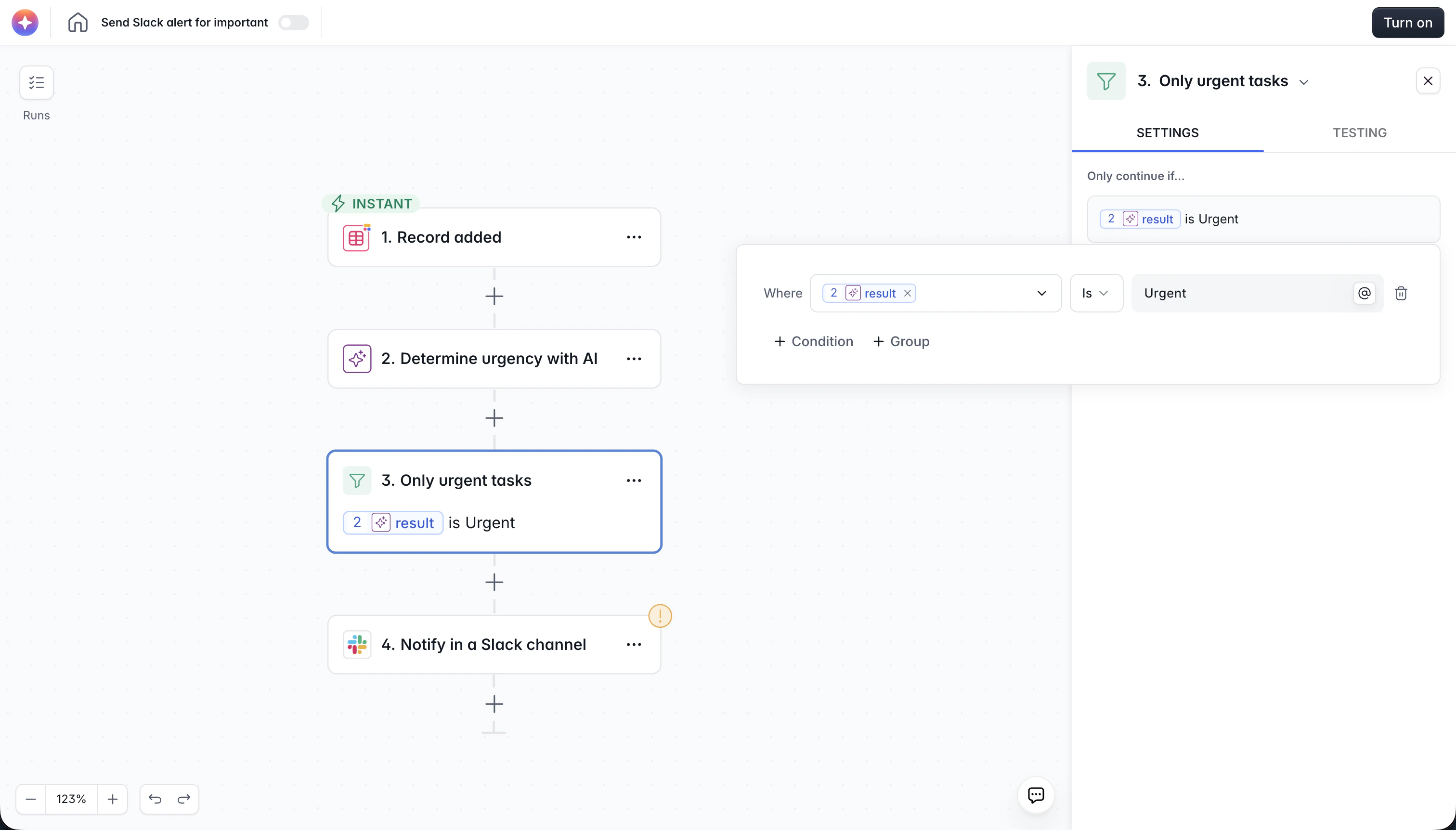

Filter action stopping the workflow unless a condition is met

Filter action stopping the workflow unless a condition is met

Unlike Branch, Filter doesn’t create two paths. It’s an early exit.


Loop

The Loop action runs a group of actions once for each item in a list.

How it works:

  1. You point the Loop at an array of items (e.g. a list of records returned by a “Get Records” action).
  2. The actions inside the loop run once per item.
  3. Inside the loop, use {loopVariables.fieldName} to access the current item’s data and {loopCounter} to know which iteration you’re on.
  4. After all items are processed, the workflow continues with the next action after the loop.

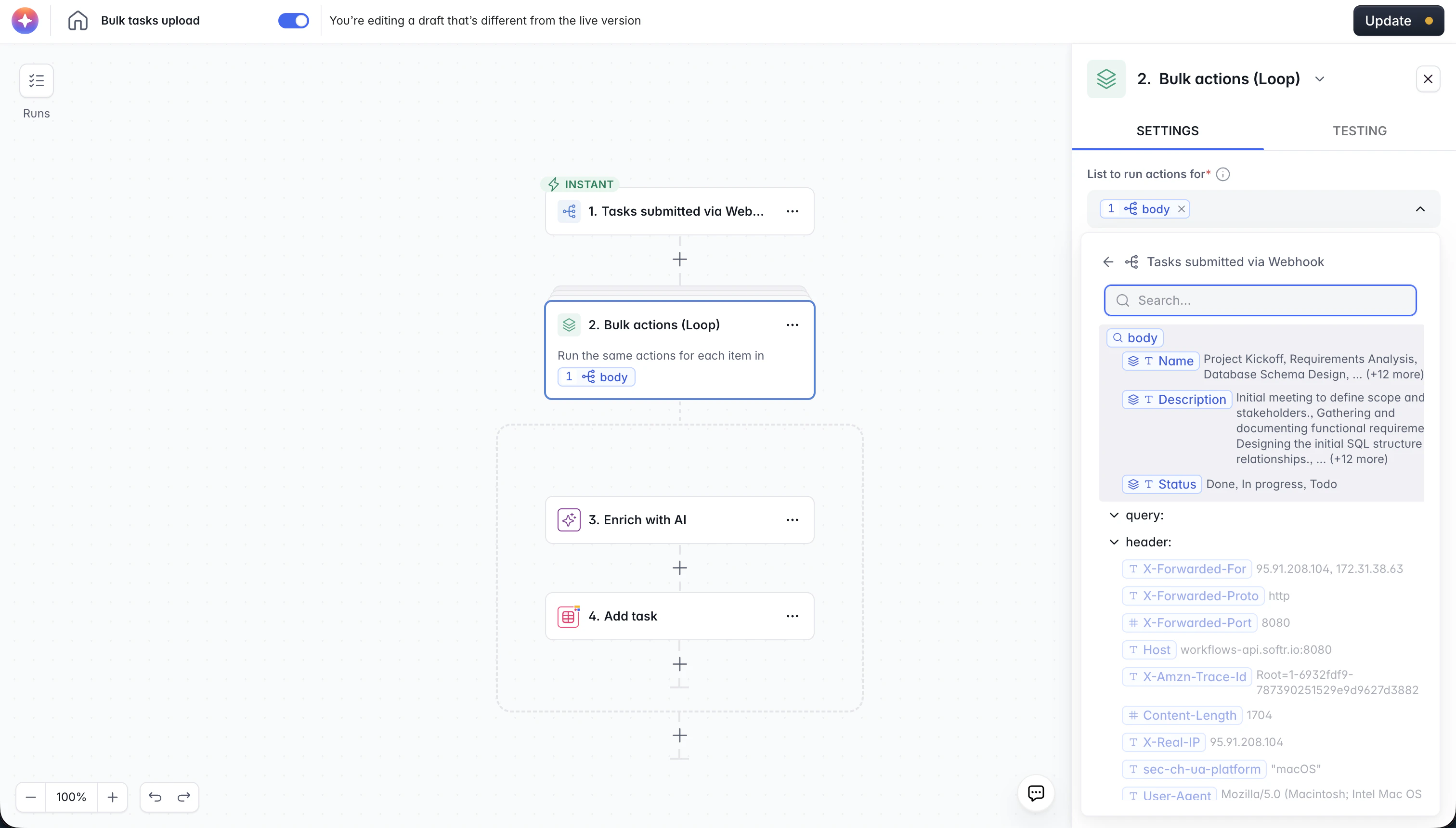

Loop action iterating over a list of items

Loop action iterating over a list of items from a webhook

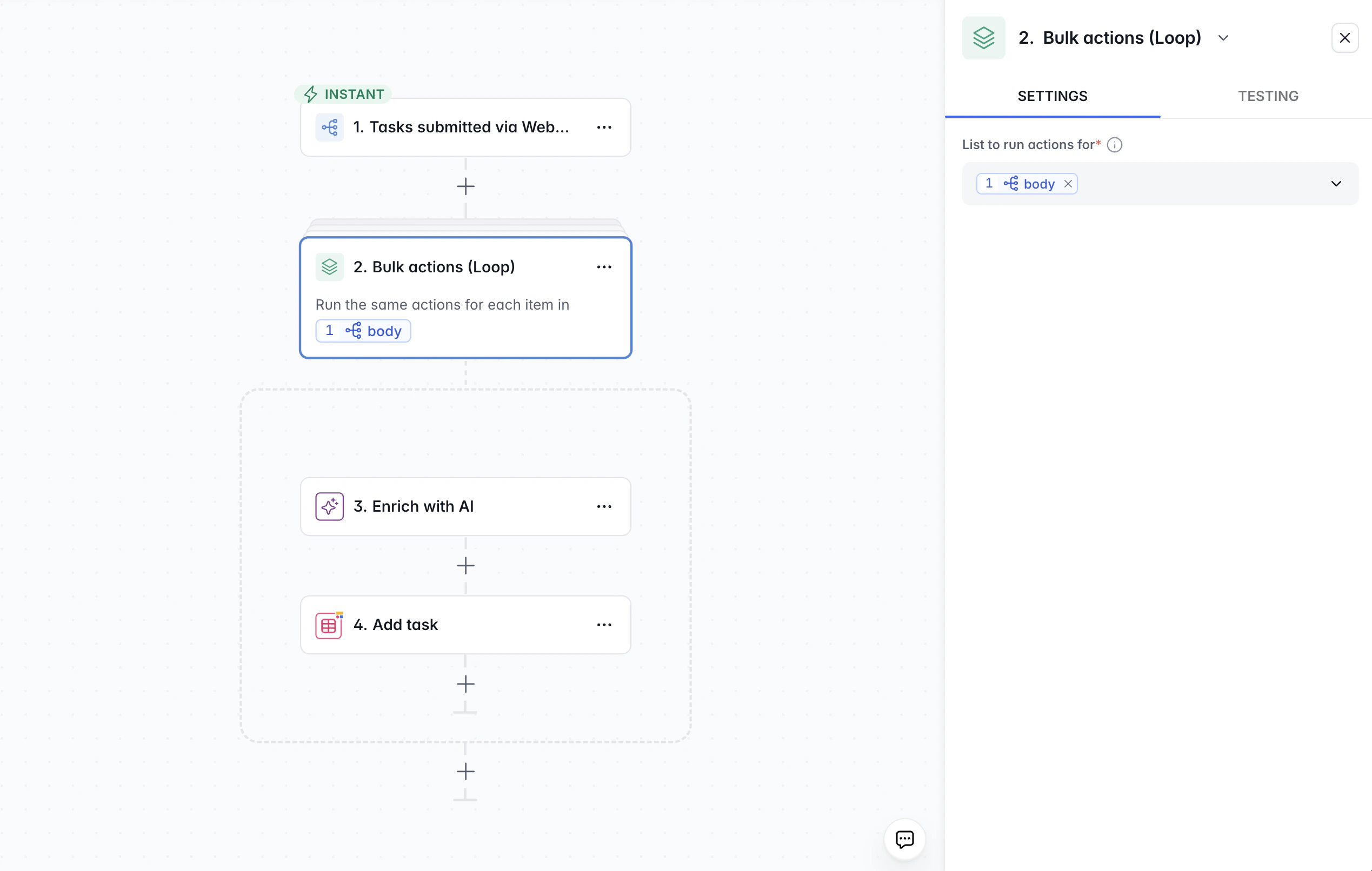

Loop with actions inside

Loop with actions inside: Enrich with AI and Add task run for each item

Example: Fetch all “Pending” orders from a Softr Databases table, then loop over them and send each customer a status update email.

Nested Loops

You can place a Loop inside another Loop to handle lists within lists.

When to use it: When each item in your outer list contains its own list of items that each need individual processing.

Example: You have a list of Tasks, and each Task has multiple Tags. You want to create one record per Task and Tag combination.

Loop Tasks
└── Loop Tags of this Task
        └── Create record (Task + Tag)
└── Mark Task as checked

Here, if a task has 3 tags, the inner loop runs 3 times and creates 3 records for that task. The outer loop then moves on to the next task.

Nesting is not limited to two levels. You can nest further if your data structure requires it.


Transform Data

The Transform Data action lets you create new values using formulas - the same formula syntax available in Softr Databases. Use it to reshape, calculate, or extract data between steps without writing code.

Common use cases:

  • Arithmetic: Increment a counter ({vote_count} + 1), calculate a total, compute a percentage
  • String manipulation: Convert text to lowercase, concatenate fields, extract a substring
  • Date extraction: Get the day of the week from a date (WEEKDAY({submission_date})), format a date for display
  • Conditional values: Return different values based on a condition using IF() formulas

You name each output field yourself, and those names become available as variables in subsequent steps.

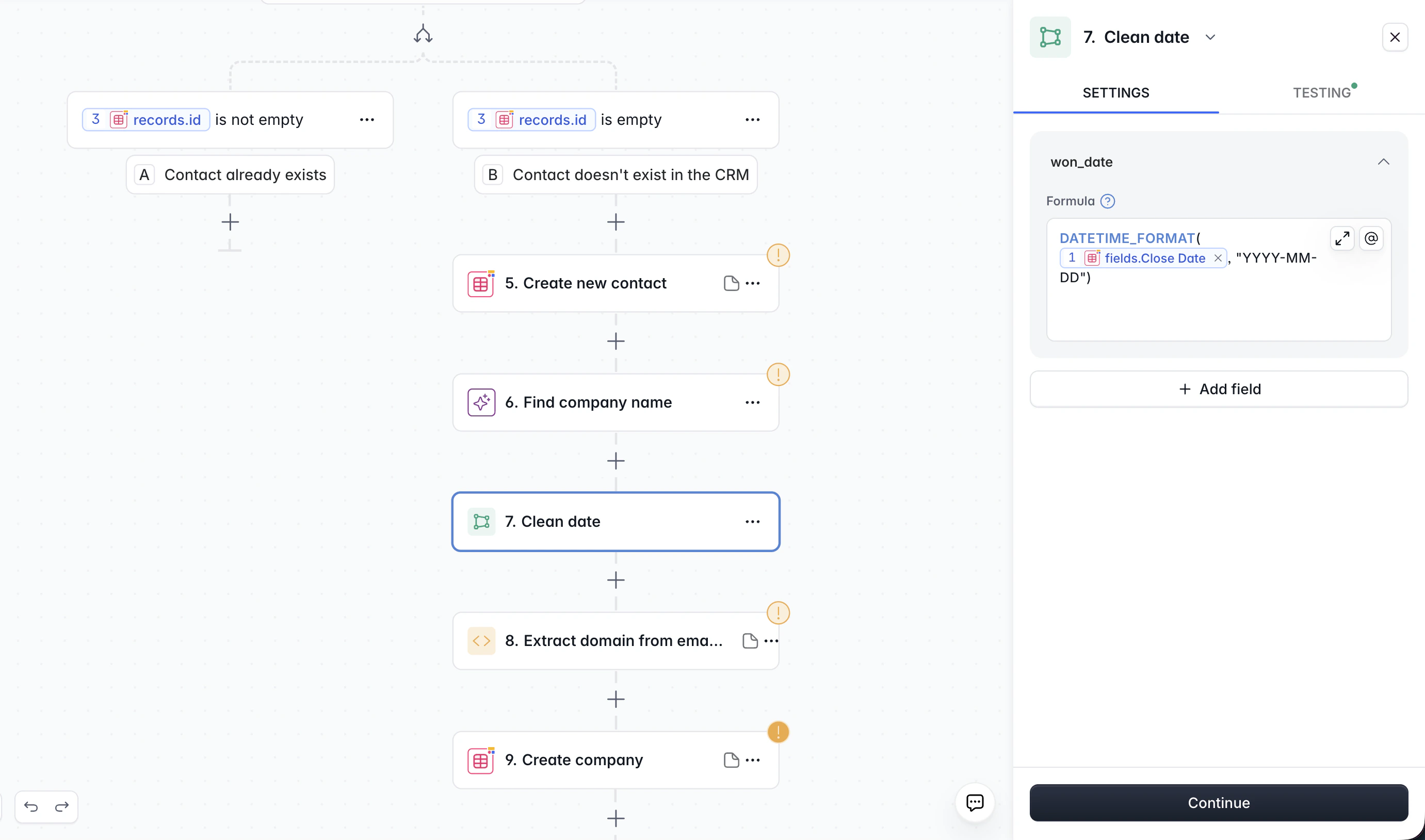

Transform Data action using a formula

Transform Data action using a DATE_TIME_FORMAT formula

When to use Transform Data vs. Run Custom Code:

Transform DataRun Custom Code
Best forSimple calculations, string formatting, date operationsComplex logic, JSON parsing, multi-step transformations
SyntaxSoftr formula languageJavaScript or Python
SetupZero setup - just write a formulaDefine input variables, write code
Plan requirementAll plansPaid plans

Example: A user clicks an “Upvote” button, triggering a workflow. Step 1: Get the current record to read its vote_count. Step 2: Transform Data with formula {vote_count} + 1. Step 3: Update the record with the new value from Step 2.


Run Custom Code

The Run Custom Code action executes JavaScript or Python inside your workflow. It’s the escape hatch for logic that formulas can’t express - parsing complex JSON, applying multi-step transformations, or computing values that would require deeply nested branches. The code can also call HTTP APIs with fetch, and the integrations you attach to the step authenticate those calls. The full reference, including the cryptography modules, is on the Run Custom Code page.

How inputs and outputs work:

  1. Define input variables in the action settings and map them to outputs from previous steps.
  2. Inside the code, access these values through the input variables.
  3. Return a value from your code - it becomes available as a variable in subsequent steps.

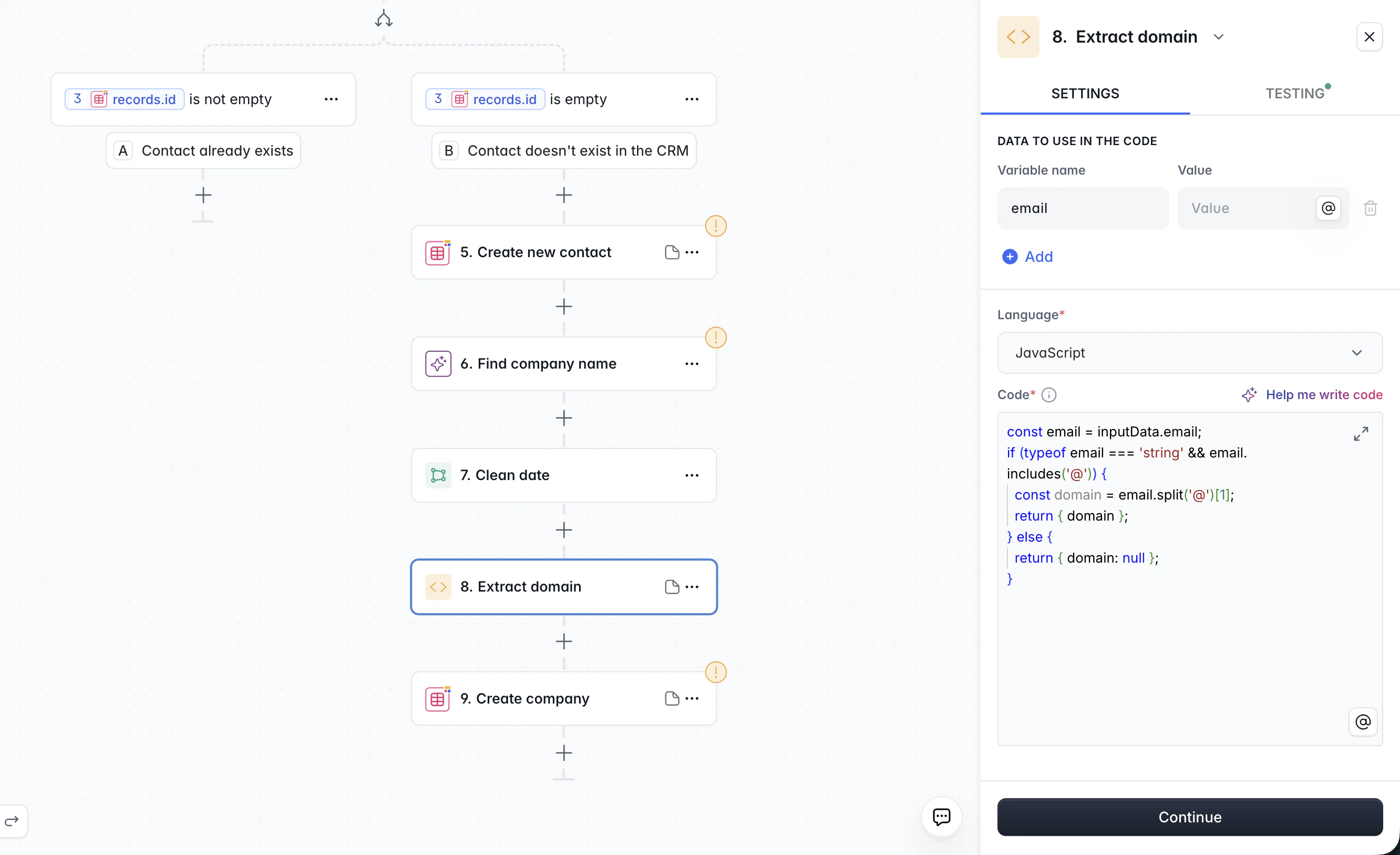

Run Custom Code action with JavaScript

Run Custom Code action with JavaScript extracting a domain from an email

Example: A Call API step returns a complex JSON response with nested objects. Use Run Custom Code to extract just the fields you need (e.g., pull out response.data.items[0].name) and return them as clean variables for the next step.


Call API

The Call API action makes an outgoing HTTP request to any REST endpoint. Use it to push data to external services, fetch information from third-party APIs, or connect with any system that supports HTTP.

Key settings:

  • Method: GET, POST, PUT, PATCH, DELETE, or OPTIONS - or a variable, such as a method field the Webhook trigger received. A variable’s value is read in any case (put is sent as PUT); an empty or unknown value fails the step with Method is required, one of: [GET, HEAD, POST, PUT, PATCH, DELETE, OPTIONS].
  • URL: The endpoint you’re calling
  • Headers: Authentication tokens, content type, and other metadata
  • Query parameters: Key-value pairs appended to the URL
  • Request body: The JSON payload to send (for POST, PUT, PATCH). From Call API 2.1.0, a body that is a variable holding text, instead of a JSON object or list, is sent as it is, with Content-Type: application/json unless the step or the connection sets another Content-Type. For form data or plain text, add that header to the step.
  • Authentication: A connected integration whose credentials the request carries. A provider integration, such as HubSpot or Stripe, sends them only to its own API host. From Call API 2.1.0, a REST API integration with a Base URL sends them only to URLs under that base URL: the same scheme, host and port, and a path that starts with the base URL’s path. Any other URL gets its header names with a placeholder value instead; only Content-Type and Accept keep their value. A REST API integration without a Base URL sends its credentials to any URL, as in earlier versions.

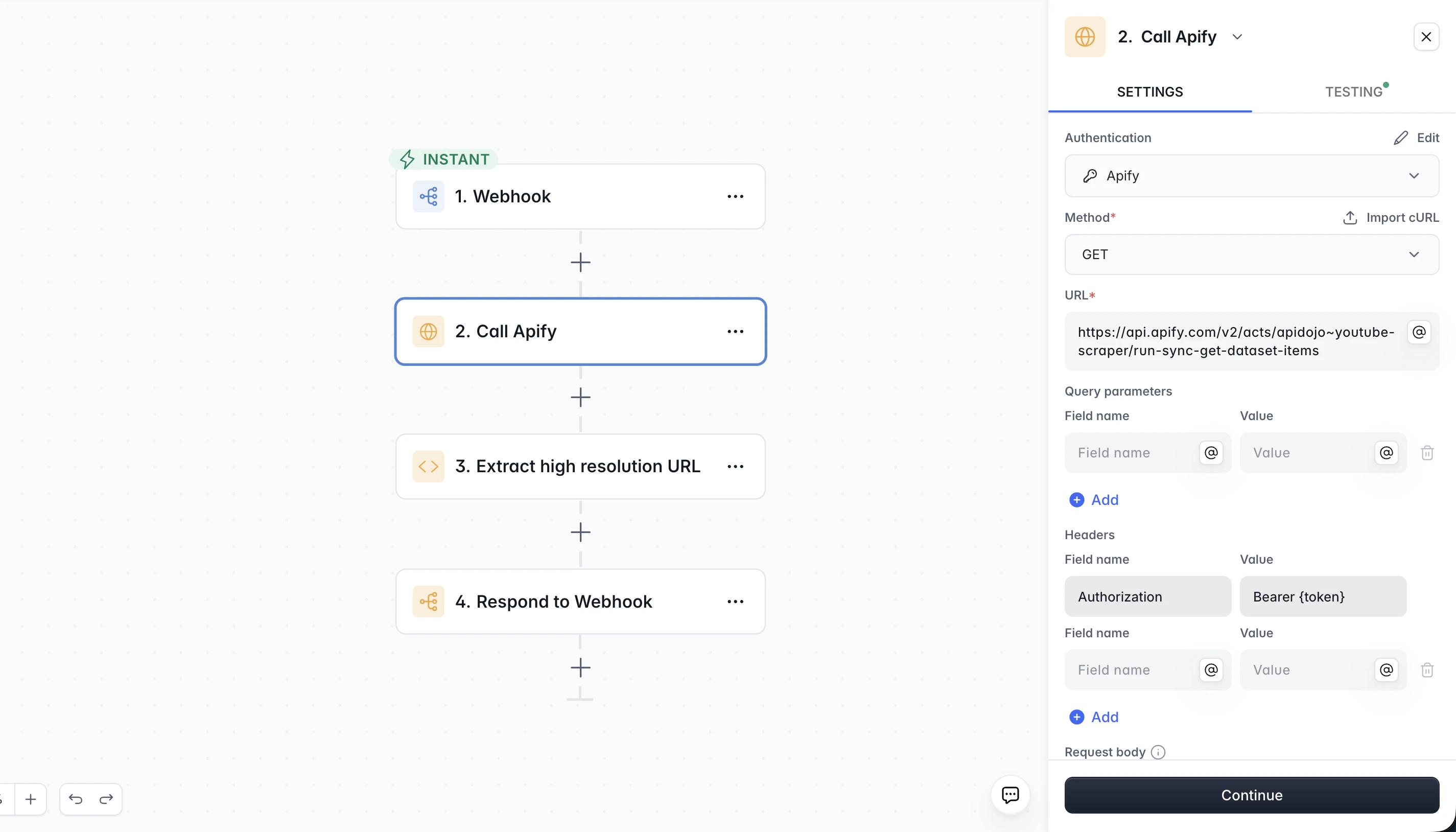

Call API action settings

Call API action configured with a GET request, authentication headers, and query parameters

The response body is available as a variable in subsequent steps - you can reference individual fields from the JSON response, or use Run Custom Code to parse a complex response.

Common HTTP status codes:

CodeMeaningWhat to check
200SuccessRequest worked as expected
400Bad RequestCheck your request body or parameters - something is malformed
401UnauthorizedCheck your API key or authentication headers
404Not FoundCheck the URL - the endpoint or resource doesn’t exist

Example: When a form is submitted, use Call API to POST the submitter’s name and email to your CRM’s API. Map the form fields into the JSON body, set the Authorization header with your API key, and the CRM creates a new contact automatically.


Structured Output from AI Actions

By default, AI actions return freeform text - useful for generating content, but difficult to use in Branch conditions or record updates because the format can vary.

Enable Structured output to get back a JSON object with typed fields instead. This makes the AI’s response predictable and machine-readable, so you can reliably branch on it, store individual fields, or pass specific values to later steps.

How to enable it:

  1. In any Custom Prompt AI action (Softr AI or bring-your-own-key), toggle Structured output on.
  2. Provide a JSON schema that describes the fields and types you expect.

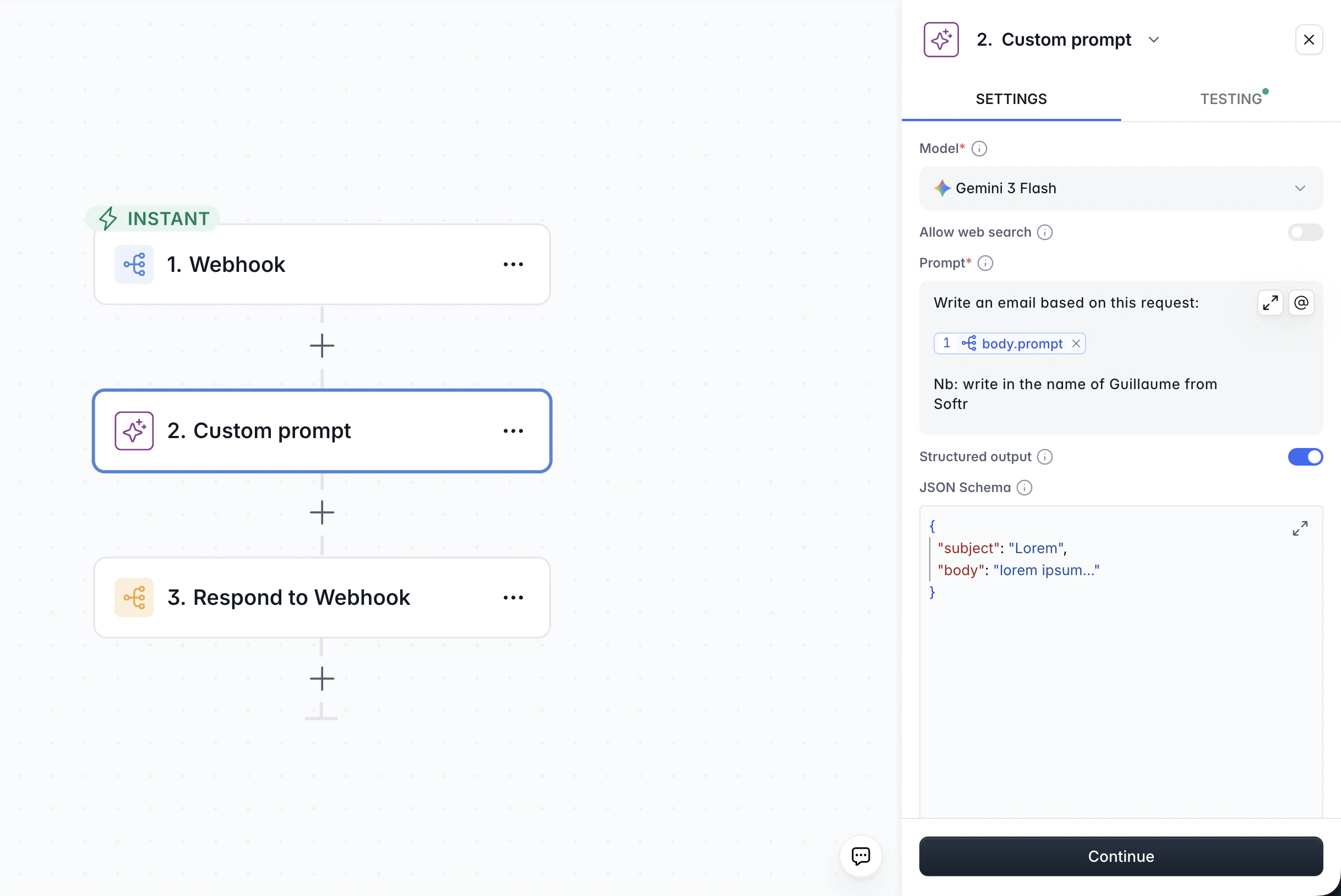

Custom Prompt with Structured output enabled

Custom Prompt with Structured output enabled and a JSON schema example

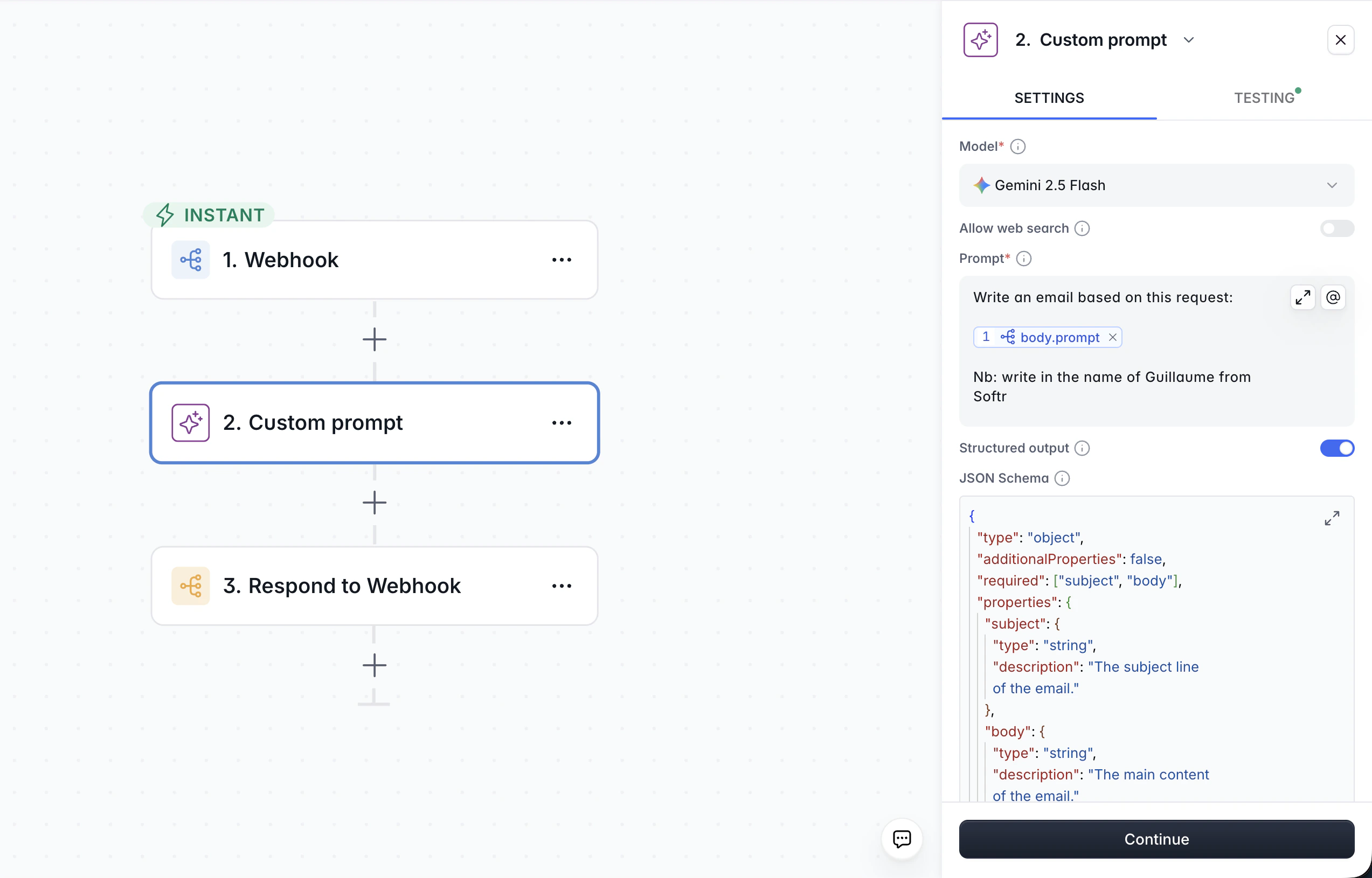

Full JSON schema for structured output

The full JSON schema defining the expected output structure

Example schema for categorizing customer feedback with a confidence score:

JSON
{
  "type": "object",
  "properties": {
    "category": {
      "type": "string",
      "enum": ["bug", "feature_request", "billing"]
    },
    "confidence": {
      "type": "integer",
      "description": "Confidence score from 0 to 100"
    }
  },
  "required": ["category", "confidence"]
}

With this schema, the AI will always return exactly two fields - category and confidence - that you can reference in subsequent steps. No risk of the model returning unexpected text or varying its format between runs.

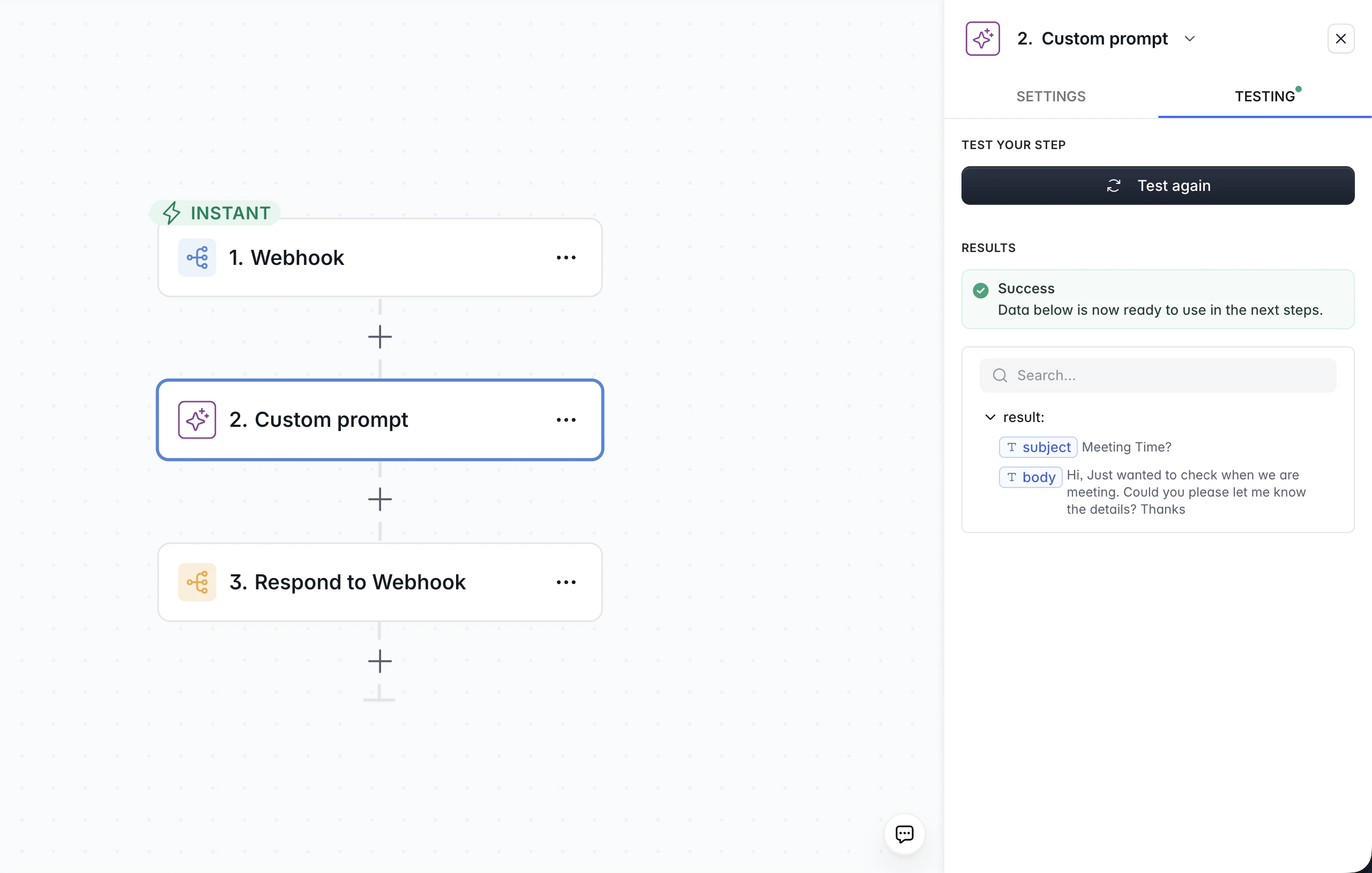

Structured output test result

Test result showing the structured output with subject and body fields

AI + Branch Patterns

Combining AI actions with Branches is one of the most common advanced patterns. The AI classifies or analyzes data, and the Branch routes the workflow based on the result.

Basic AI routing

Trigger: Record added (feedback table)
  → AI Categorize (categories: Bug, Feature Request)
  → Branch: Is category "Bug"?
      ├── Yes → Post to #bugs Slack channel + Update record category
      └── No → Post to #feature-requests channel + Update record category

The AI Categorize action outputs a category value. The Branch checks that value and sends the workflow down the appropriate path. Each path can notify a different team and update the original record with the assigned category.

Confidence-gated routing

When you need more control, use a Custom Prompt with Structured output that returns both a category and a confidence score. Then branch on the confidence level:

Trigger: New support ticket
  → Custom Prompt AI (structured output: category + confidence)
  → Branch: Is confidence ≥ 70?
      ├── Yes → Auto-assign to team + Update record
      └── No → Send interactive Slack message to reviewer
                  → Branch on reviewer's response
                      ├── Approve AI suggestion → Update record
                      └── Override → Update record with reviewer's category

This pattern lets AI handle the clear-cut cases automatically while routing ambiguous ones to a human. See Human-in-the-Loop below for more on the interactive review step.


Choosing an AI Model

Softr workflows give you access to models from OpenAI, Anthropic, Google, Mistral, and DeepSeek. The right model depends on the complexity of the task - using the most powerful model for every step wastes credits and slows down your workflow.

Task typeRecommended tierExamples
Classification and routingSmaller, faster modelsClaude Haiku, GPT-4.1 mini, GPT-5 nano
Writing, summarization, data extractionMid-tier modelsClaude Sonnet, GPT-4.1, GPT-5 mini
Complex reasoning, code generation, multi-step analysisTop-tier modelsClaude Opus, GPT-5, o3

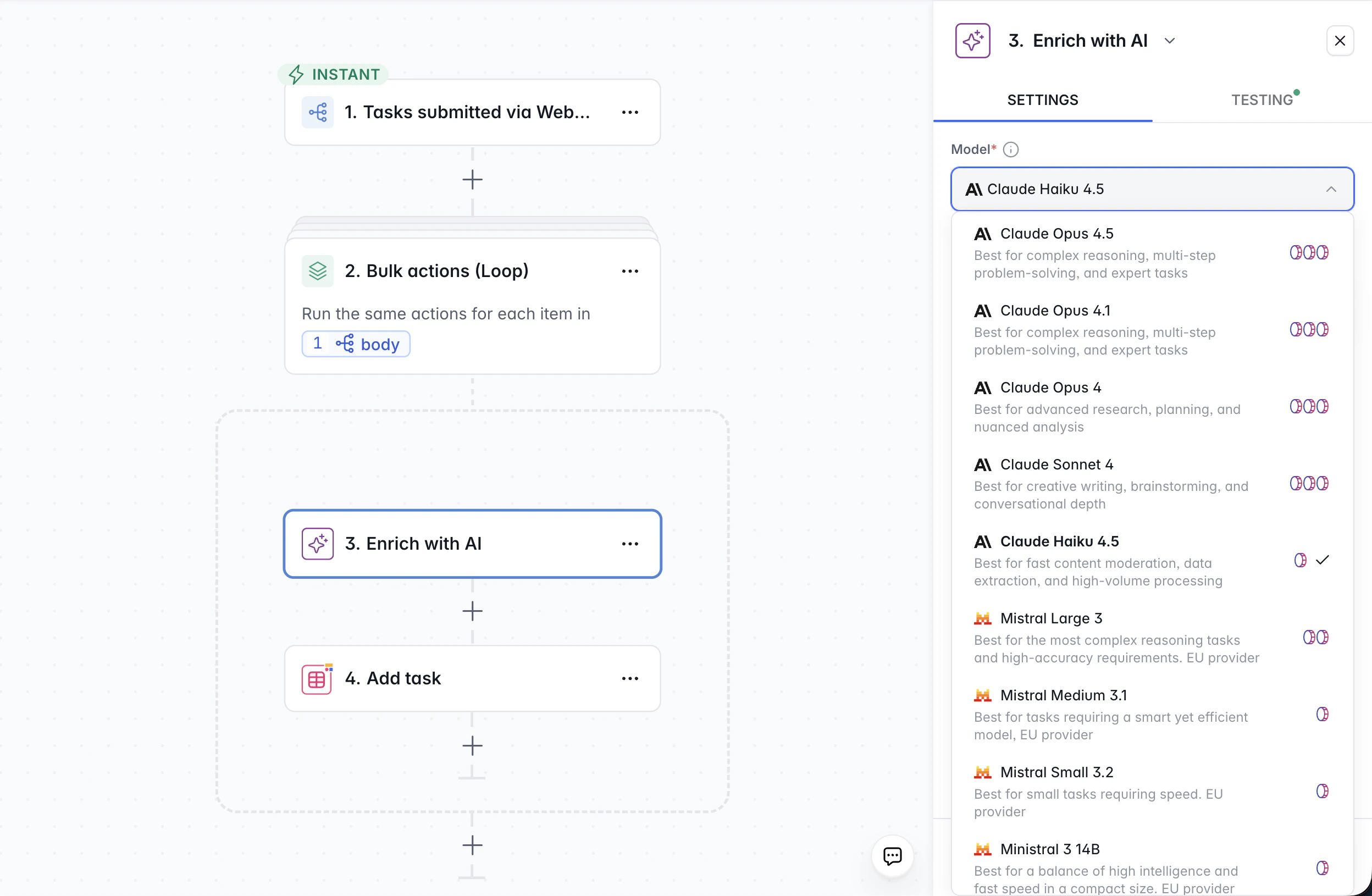

AI model selector

AI model selector showing available models from multiple providers

With Softr AI, you select from these models and usage is deducted from your AI credits. On Business and Enterprise plans, you can also bring your own API key for OpenAI, Anthropic, Google Gemini, Mistral, or DeepSeek to use your own account directly.


Human-in-the-Loop

Some workflows should pause for human judgment rather than proceeding fully automatically. Interactive actions pause the workflow, send a message with response options, and resume based on the person’s decision.

When to use it

  • High-stakes decisions: expense approvals, content publishing, permission changes
  • AI confidence is low: the AI categorized something but isn’t sure (see Confidence-gated routing above)
  • Compliance requirements: a human must review before certain actions proceed

Slack Interactive Messages

The Slack - Send Interactive Channel Message and Slack - Send Interactive Direct Message actions send a Slack message that includes buttons. The workflow pauses until the recipient clicks a button, then resumes on the corresponding branch.

Example - Expense approval workflow:

Trigger: New expense report submitted (form)
  → AI validates expense category (structured output)
  → Slack interactive DM to manager:
      "New expense: $500 for Software - submitted by Jane"
      [Approve] [Reject] [Request more info]
  → Branch on manager's response:
      ├── Approve → Update record status to "Approved" + Notify submitter
      ├── Reject → Update record status to "Rejected" + Notify submitter
      └── Request more info → Send email to submitter asking for details

The workflow stays paused until the manager clicks one of the buttons. This means the total execution time can be minutes, hours, or even days - the workflow will pick up right where it left off.


App-Triggered Workflows and UI Feedback

When a workflow is triggered by a user action inside your Softr app (clicking a button or submitting a form), the user is waiting for a response. These workflows are synchronous from the user’s perspective, so you can control what they see while the workflow runs and after it completes.

Wait Screen

The Show Wait Screen action displays a loading overlay in the app while the workflow processes. Add a custom message so the user knows what’s happening (e.g., “Processing your vote…” or “Generating your report…”).

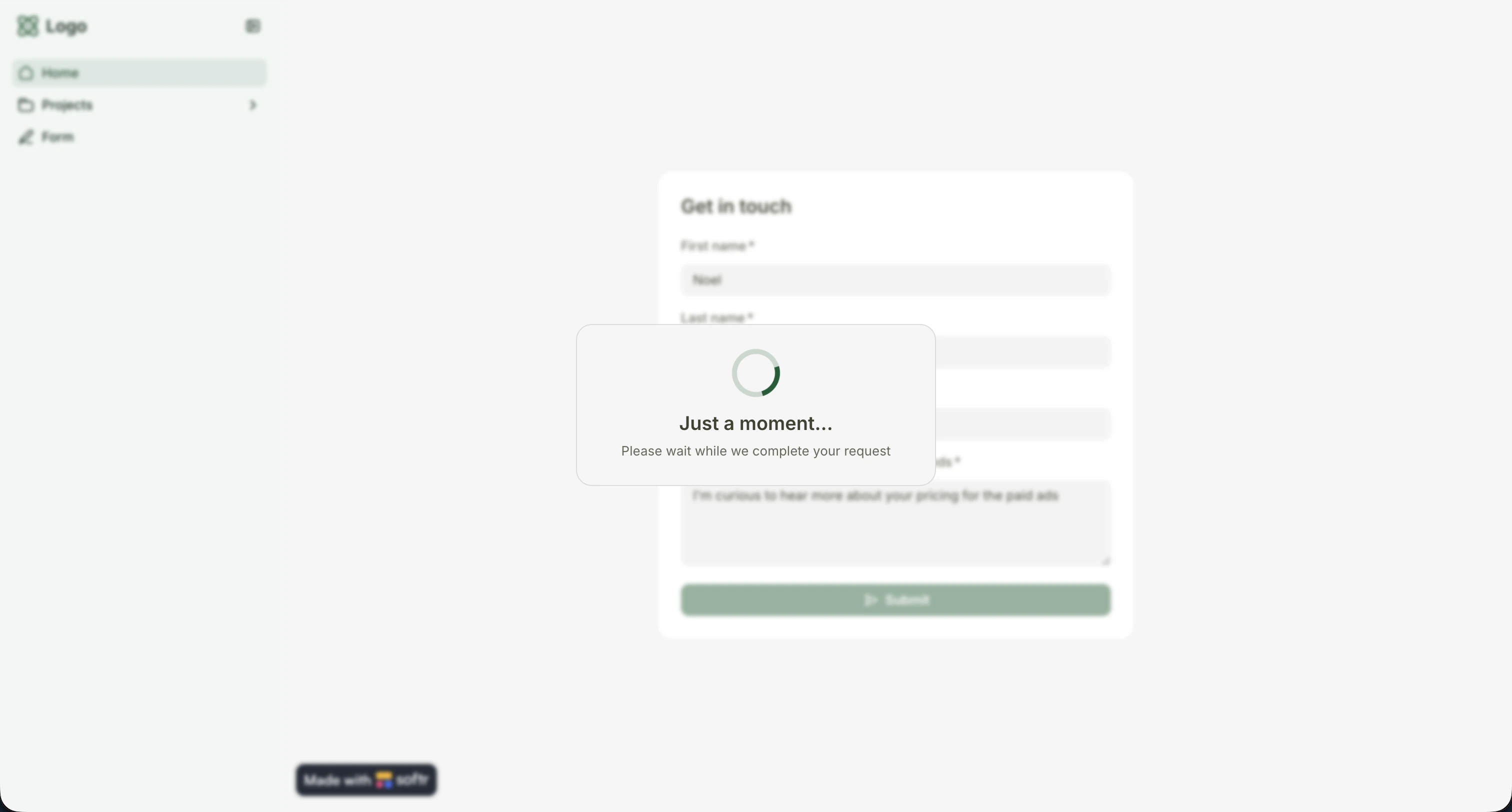

Wait screen loading overlay

Wait screen showing a loading overlay in the app

The workflow waits at this step until the app confirms that it shows the wait screen. If the user closes the tab, refreshes the page or goes back right after the click, the app never confirms. Use Continue without confirmation after to decide what happens then:

  • A duration (30 seconds to 1 hour): the workflow waits up to this long for the confirmation, then continues with the next step. While it waits, the run details show the time it continues at. The step can continue up to about a minute after that time. Afterwards, the run details show the step as succeeded.
  • Never: the workflow waits for the confirmation only. The run stays in “Waiting for action” until the app confirms.

New wait screens continue after 5 minutes. Wait screens added before this setting existed use Never, so they keep their behavior until you change it.

End User Interactions

The End User Interactions action defines what happens after the workflow completes:

  • Toast message: Show a success, info, warning, or error notification with a custom title and message
  • Navigation: Stay on the current page, open a different page, open a record’s details page, open an external URL, refresh the form, or close a modal
  • Reload blocks: Toggle Reload all blocks on current page to refresh data displayed in the app - essential when your workflow updated a record that’s visible on screen

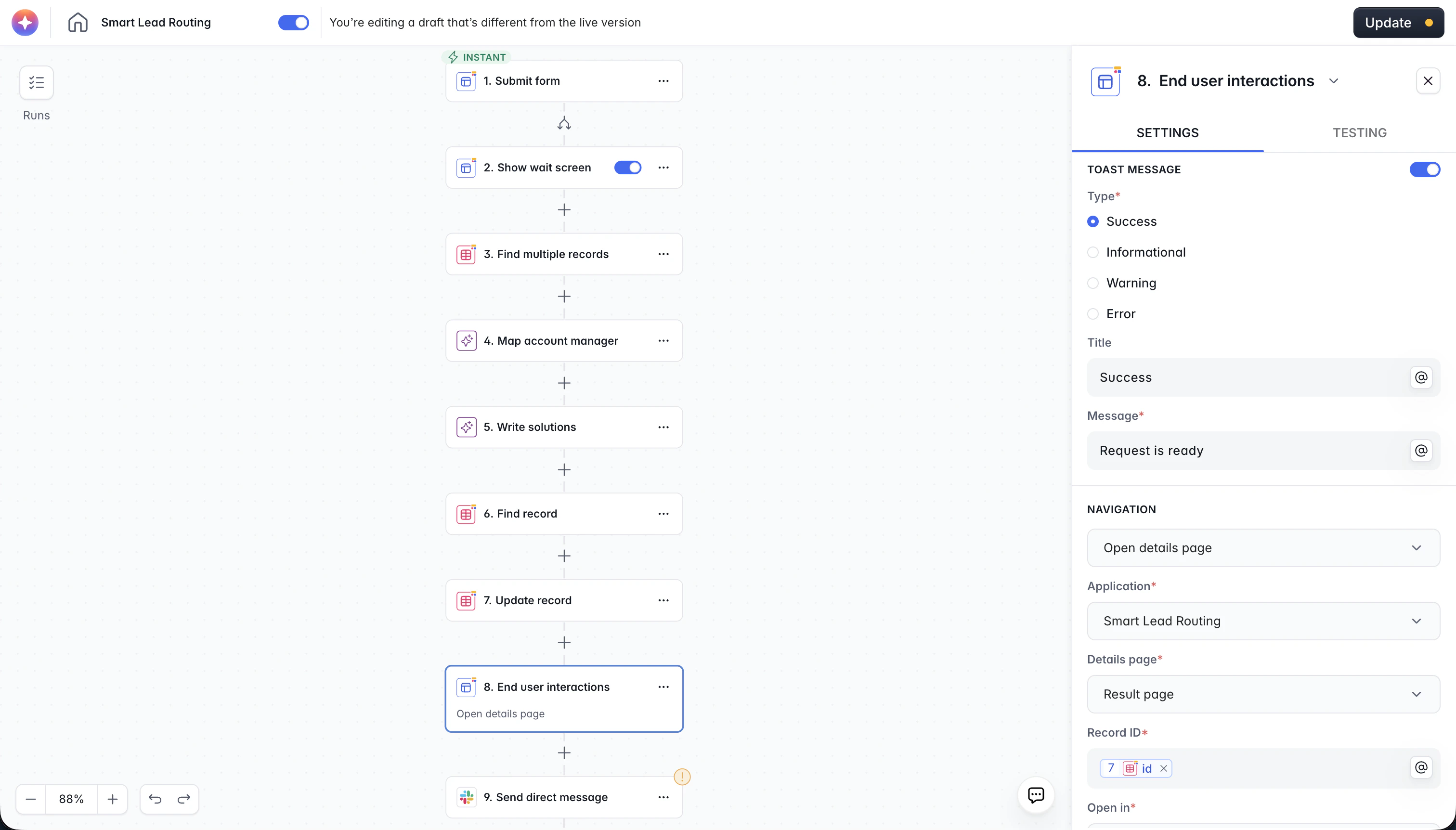

End User Interactions settings

End User Interactions settings with toast message and navigation options

The app confirms this step once it shows the toast and navigates. If the user already left the page, it never confirms. Continue without confirmation after works as on the wait screen: the workflow continues after the chosen duration, or waits for the confirmation only with Never. New steps continue after 5 minutes. Steps added before this setting existed use Never.

Example - Upvote button:

Trigger: User clicks "Upvote" button (Run Custom Workflow)
  → Show Wait Screen ("Processing your vote...")
  → Get Record (using record ID from trigger)
  → Transform Data: vote_count + 1
  → Update Record with new vote count
  → End User Interactions:
      Toast: "Vote recorded!" (success)
      Reload all blocks on current page: Yes

The user sees a brief loading state, then a success message, and the vote count on screen updates immediately.


Selective Context Pattern

When using AI to process information from your database, a common mistake is dumping all your records into a single AI prompt. This is expensive, slow, and often produces worse results because the AI has too much noise to sift through.

The selective context pattern solves this by using a two-pass approach: a small AI model first selects which records are relevant, then only those records are passed to the main AI task.

The pattern:

Trigger: New task / request arrives
  → Get Records: Fetch all items from your knowledge base
  → Run Custom Code: Extract only the ID and title of each record
  → AI Custom Prompt (small model):
      "Given this task: {task_description},
       which of these items are relevant? {list_of_titles_and_ids}"
      Structured output: array of selected IDs
  → Loop over selected IDs:
      └── Get Record: Fetch the full content of each selected record
  → AI Custom Prompt (larger model):
      "Complete this task: {task_description}
       Using these resources: {full_content_of_selected_records}"
  → Store result

Why this works:

  • Pass 1 is cheap: a small model reads short titles and picks the relevant ones. This can process hundreds of items for minimal cost.
  • Pass 2 is focused: the larger model only receives the 3-5 records that actually matter, so it produces higher-quality output with less noise.
  • Total cost is lower than sending everything to a large model in a single prompt.

Example: You have a database of 50 marketing insights (brand guidelines, product specs, audience research, content frameworks). A user requests a LinkedIn post about a specific product. Instead of sending all 50 insights to the AI, the workflow extracts their titles, asks a small model to pick the relevant ones (e.g., “LinkedIn post framework”, “Product X specs”, “Brand voice guidelines”), fetches those 3 full records, and passes them to a larger model to write the post.

Use these docs with your AI tools

An AI agent can read this documentation directly. You do not need an account or an API key. Everything here is public and read-only.

Query these docs via MCP

Recommended

Add this server to Claude, Claude Code, Cursor, Mistral, or any tool that supports MCP. Your agent can then search Softr Documentation documentation and read it in full, instead of answering from memory.

https://docs.softr.io/mcp
  • searchFind the passages that answer a question.
  • fetchRead one page in full, as Markdown.
  • list_pagesSee every page in this documentation.

Query these docs over HTTP

The same tools also work as plain web requests. Use this for scripts, or for any tool that does not support MCP. There is one endpoint per tool. Arguments go in the query string, and the answer comes back as JSON.

https://docs.softr.io/api/docs/search?query=custom+domain

Read the OpenAPI description. It is built from the same definitions as the tools, so it always matches what the endpoints do.

Read these docs as Markdown

Add .md to any page URL to get its Markdown source. You can also send the headerAccept: text/markdown to the page URL itself.

To read the whole documentation in one file, open llms-full.txt. For a short index of every page, open llms.txt.
